Supplies for the XTS Motorola Digital Radios

Models XTS1500 / XTS2500 / MT1500 / PR1500

Download a Print Version Catalog

Notes on Li-Ion/LiPo Batteries and Motorola IMPRES /IMPRES II Chargers

_______________________________________________________________

Premium Replacement Batteries

XTS-1500/2500.MT1500/PR1500 Catalog for Printing

Our Smart Batteries are compatible with IMPRES ™ I & II Chargers

Power Products SMART Batteries Video: https://youtu.be/gLviRvDH7nc

Excellent Fit with these specific radios

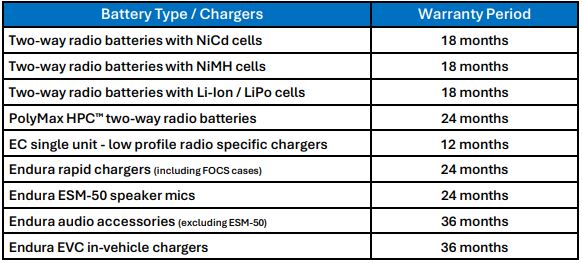

One-year warranty on NiCD / NIMH / Li-Ion Packs

Two-year warranty on Li-Po Polymax Radio batteries

All Batteries are Genuine Power Products Packs!

P/N CX9858LIPIC - SMART BATTERY

Our Highest Capacity Li-Polymer battery for these radios

Fits: XTS2500, MT1500, PR1500. PolyMax HPC cells.

Includes belt clip. Smart battery. Charges / calibrates on Motorola IMPRES 1 / 2 chargers.

Weight: 0.45 lbs. / 204.1 g.

2-Year Warranty

7.4 V / 4100 mAh / 25.9 Wh / Li-Po

$112.31

Data Sheet -- Flier -- Buy Now on Amazon -- call or email for a quote

______________________________________________________________

P/N LE9857MHIS, Intrinsically Safe Battery

7.5V/ 2500 mAh / 18.8 Wh / NIMH

Fits: XTS2500, MT1500, PR1500. Japanese cells. Includes belt clip. IP60 rated.

Certified by SGS to TIA-4950 / CSA C22.2 No. 157 / UL 913 5th Edition standard for intrinsically safe use

(Class I, II, III / Division 1 / Groups C-G / -20° C to 40° C, T3C) and non-incendive use

(Class I / Division 2 / Groups A-D / -20° C to 40° C, T3C).

1-Year Warranty

$98.43

Data Sheet -- Buy Now on Amazon -- call or email for a quote

_________________________________________________________

P/N C9815-1

7.5V / 1200 mAh / NiCD

Fits: XTS2500, MT1500, PR1500. Includes belt clip. Special order item.

Replaces OEM Part Number: NTN9815.

Special Order Item

1-year warranty

$76.65

Not Sold On Amazon -- call or email for a quote

_________________________________________________________

P/N G2G9858

No O.E.M. Equal

7.4V / 2500 mAh / 18.5 Wh / Li-Ion

Fits: XTS2500, MT1500, PR1500. Japanese cells. Includes belt clip and USB charging cable (24").

Dimensions (L x W x D): 4.84" x 2.32" x 0.98" / 122.9 x 58.9 x 24.9 mm. Weight: 0.45 lbs. / 204.1 g.

Replaces OEM Part Number: NNTN7335, NNTN7554, PMNN4495.

1-year warranty

$94.95

Data Sheet -- Buy Now on Amazon -- call or email for a quote

G2G USB Batteries Video: https://youtu.be/wYIFyjJTzdM

_________________________________________________________

P/N C9858CSBK

Fits: XTS2500, HT750, HT1250, HT1550, MT1500, PR1500, PRO5150, PRO7150, more.

Includes belt clip. Color: Black. Approximate capacity with 12 AA batteries is 5000 mAh. Special order item.

Other Compatible Radios: PRO9150, XTS2500, PR1500, GP320, GP340, GP360, GP380, GP640,
GP680, GP1280, MTX850, MTX850LS, MTX900, MTX950, MTX8250LS, MTX9250.
Instruction Manual
Replaces OEM Part Number: NNTN6686A.
1-Year Warranty
Product Features: Holds 12 replaceable AA alkaline batteries. Includes belt clip.
Ideal for emergency use. Alkaline batteries sold separately.

$71.18

Not Sold on Amazon, Call or email to Order

________________________________________________________________

P/N C9858CSOR

Fits: XTS2500, HT750, HT1250, HT1550, MT1500, PR1500, PRO5150, PRO7150, more.

Includes belt clip. Color: Black. Approximate capacity with 12 AA batteries is 5000 mAh. Special order item.

Other Compatible Radios: PRO9150, XTS2500, PR1500, GP320, GP340, GP360, GP380, GP640,
GP680, GP1280, MTX850, MTX850LS, MTX900, MTX950, MTX8250LS, MTX9250.
Instruction Manual
Replaces OEM Part Number: NNTN6686A.
1-Year Warranty
Product Features: Holds 12 replaceable AA alkaline batteries. Includes belt clip.
Ideal for emergency use. Alkaline batteries sold separately.

$71.18

Not Sold on Amazon, Call or email to Order

________________________________________________________________

P/N C9858MH-1

7.5V / 2000 mAh / NIMH

Fits: XTS2500, MT1500, PR1500. Includes belt clip (CL9008).

Replaces OEM Part Number: NTN9858C.

1-Year Warranty

$56.76

Buy Now on Amazon - Call or email to order

________________________________________________________________

P/N C9858MHIC - SMART BATTERY

7.5V / 2500 mAh / NIMH / SMART Battery

Fits: XTS2500, MT1500, PR1500. Japanese cells. Includes belt clip.

Smart battery compatible with Motorola IMPRES 1 chargers (WPLN4114AR / WPLN4127AR) and IMPRES 2 chargers (PMPN4135A / PMPN4134A).

Dimensions (L x W x D): 4.84" x 2.32" x 0.98" / 122.9 x 58.9 x 24.9 mm. Weight: 0.62 lbs. / 280.7 g.

Replaces OEM Part Number: NTN9858C, HNN4003

$95.60

Brochure - Buy Now on Amazon - Call or email to order

________________________________________________________________________

P/N C9858X

7.5V / 2700 mAh NIMH

Fits: XTS2500, MT1500, PR1500. Japanese cells. Includes belt clip.

$66.06

Order on Amazon -- Call or email to order

__________________________________________________________________

P/N C9858PL - Non-Rechargeable Primary Battery

Back-Up Glove-box Battery for Emergency Use

10-Year Shelf Life!

Fits: XTS1500, MT1500, PR1500. Non-rechargeable, primary lithium. Japanese cells.

Color: Black. Special order item.

$61.28

Not Sold on Amazon -- Call or email to order

____________________________________________________________________

Charging Solutions

Radio may stay powered on while charging

Space efficient designs simplify in-vehicle installation

Cold and hot battery monitoring & other important warnings

All models safely charge O.E.M. Li-Ion and NIMH batteries

Notes on Li-Ion/LiPo Batteries and IMPRES /IMPRES II Chargers

Our Best Single Cup Mobile Charger

P/N EVC-MT13

In-Vehicle Single Cup Charger

Charges: XTS2500, MT1500, PR1500, XTS1500, XTS3000, XTS3500, Cosmo / EF Johnson 5100 series, 51SL ES, Ascend ES, VP400, VP600, VP900.

Includes DC power cable, tie-down strap, and USB port for charging mobile phone or tablet. For use with NiCd, NiMH, Li-Ion, and LiPo batteries.

Key Product Features: Radio holder provides a precision fit with the radio and battery.
Status LED confirms charging in progress, charging 80% complete, and battery fully charged.
Includes fasteners for mounting. Charges battery with or without radio. Two-year warranty.

Rugged single unit charger tested to 9 g-force. Includes USB port

for mobile phone charging, 12-24 VDC, Full 2-year warranty

$179.80

Brochure - User Manual - Data Sheet - Order on Amazon - call or email for a quote

All Mobile Chargers Video: https://youtu.be/vrret7Rq18M

___________________________________________________________________

Our Best 4-Cup Mobile Charger

P/N EVC-MT13-4

Also Charges: MT1500, PR1500, XTS1500, XTS3000, XTS3500, Cosmo / EF Johnson 5100 series,

51SL ES, Ascend ES, VP400, VP600, VP900. Includes DC power cable with locking XLR connector.

For use with Li-Ion, LiPo, NiMH, and NiCd batteries.

Dimensions (HxWxD): 10.0" x 16.0" x 4.8" / 25.4 x 406.4 x 121.9 mm.

Brochure

User Manual

Key Product Features: Each charging position includes a tie-down strap and USB port for charging a mobile phone or tablet.
Status LED confirms charging in progress, charging 80% complete, and battery fully charged.
Charges battery with or without radio. Two-year warranty.
Tested to 9 g-force and NFPA compliant.

In Vehicle 4-unit charger, ultra compact, 12-24 VDC, Full 2-year warranty

$1057.05

Flier -- Buy Now on Amazon -- call or email for a quote

All Mobile Chargers Video: https://youtu.be/vrret7Rq18M

__________________________________________________________________

Single Cup Desk Charger

P/N EC1-MT13B

120/240 VAC Desktop Charger

Charges: MT1500, PR1500, XTS1500, XTS3000, XTS3500, Cosmo / EF Johnson 5100 series, 51SL ES, Ascend ES, VP400, VP600, VP900.

For use with NiCd, NiMH, Li-Ion, and LiPo batteries.

Product Features: Replaceable pod allows future use with different radios / batteries. Charges battery with or without radio.
Status LED confirms charging in progress, charging 80% complete, and fully charged.
Certified to meet U.S. Department of Energy (10 CFR, Part 430, PC3/4) and California Energy Commission (CEC-400-2011-005) requirements for energy conservation.
Provides cold and hot battery monitoring for batteries with temperature sensing circuitry.

Affordable single unit charger, Full 2-year warranty

$59.85

Data Sheet -- Buy Now on Amazon -- User Manual -- call or email for a quote

Power Products Charger Video: https://youtu.be/T2NvcZlVu1I

_____________________________________________________________________

Single Cup Mobile Charger

P/N EC1M-MT13B

In-Vehicle Charger

Charges: XTS2500, MT1500, PR1500, XTS1500, XTS3000, XTS3500, Cosmo / EF Johnson 5100 series, 51SL ES, Ascend ES, VP400, VP600, VP900.

For use with NiCd, NiMH, Li-Ion, and LiPo batteries.

Product Features: Includes vehicle power adapter and mounting bracket with adjustable tie-down strap.
Replaceable pod allows future use with different radios / batteries. Charges battery with or without radio.
Status LED confirms charging in progress, charging 80% complete, and fully charged.
Certified to meet California Energy Commission requirements for energy conversation (CEC-400-2011-005).
Provides cold and hot battery monitoring for batteries with temperature sensing circuitry.

Single unit in-vehicle charger with mounting bracket and VPA

12-24 VDC, Full 2-year warranty

$77.85

Data Sheet -- Buy Now on Amazon -- User Manual -- call or email for a quote

EC1M Mobile Charger Video: hhttps://youtu.be/T2NvcZlVu1I

____________________________________________________________________________

2-Cup Charger, Base or Mobile

P/N EC2M-MT13-D (Desktop) or EC2M-MT13-D-M (Mobile)

Also Charges: GP900, GP1200, JT1000, MT1500, MT2000, MTS2000, MTX8000, MTX9000, MTZ2000,

PR1500, XTS1500, XTS3000, XTS3500, Cosmo / EF Johnson 5100 series, 51SL ES,

Ascend ES, VP400, VP600, VP900. For use with NiCd, NiMH, Li-Ion, and LiPo batteries.

Mobile Version supplied with TWC6M-HW for hard wire connection & TWC6M-VPA for powering charger from a 12V / 24V outlet.

& EC2M-MB Steel Mounting Plate for vehicle Installation

User Manual

Product Features: Charges two batteries with or without radio. Replaceable pod allows future use with different radios / batteries.
Status LED for each position confirms charging in progress, charging 80% complete, and fully charged.
Provides cold and hot battery monitoring for batteries with temperature sensing circuitry.
Certified to meet U.S. Department of Energy (10 CFR, Part 430, PC3/4) and California Energy Commission (CEC-400-2011-005) requirements for energy conservation.
Full 2-Year Warranty

Data Sheet -- call or email for a quote

Buy AC Desktop unit on Amazon -- Buy 12-24 VDC mobile version on Amazon

Power Products Charger Video: https://youtu.be/T2NvcZlVu1I

___________________________________________________________________

6-Cup Charger, Base or Mobile

P/N EC6M-MT13B (Desktop) or EC6M-MT13B-M (Mobile)

Desktop or In-vehicle Charger

Six unit charger, 120/240 VAC model or 12-24VDC Model

Designed for use with specific TWP charging pods. Charges NiCd, NiMH, Li-Ion, and LiPo batteries based

on the pod selected. Includes 100-240V AC power supply (TWC6M-PS) with cord for U.S. type wall outlet (TWC6M-PC) and user manual.

Product Features: Compact footprint (20.0" x 5.8" x 3.6") and weighs only 3.1 lbs. Rapid charges NiCd, NiMH,
or Li-Ion batteries based on pod selected. Replaceable pods allow future use with different radios / batteries
(confirm compatibility with EC6M before ordering). Charges battery with or without radio.
Status LED confirms charging in progress, charging 80% complete, and fully charged.
Approvals: FCC, CEC, CE, and UL for power supply.

User Manual

Full 2-year warranty

Desktop AC Version: $375.00 Mobile DC Version: $516.45

Both come with AC power supplies, DC version includes

DC Hard Wire Kit and 12/24 VDC DC coil cord and mounting bracket with tie-downs

Data Sheet -- call or email for a quote

Buy AC Desktop unit on Amazon -- Buy DC mobile version on Amazon

Power Products Charger Video: https://youtu.be/T2NvcZlVu1I

_____________________________________________________________________________

12 cup Charger, Base or Mobile

P/N EC12M-MT16A-D (Desktop) or EC12M-MT16A-D-M (Mobile)

Desktop or In-vehicle Charger

12 unit charger, 120/240 VAC model or 12-24VDC Model

Includes 6 dual charging pods and power supply with cord for U.S. type wall outlet.

Rapid charges NiCd, NiMH, Li-Ion, or LiPo batteries based on pod selected.

Certified to meet California Energy Commission (CEC-400-2011-005) and DoE (10 CFR, Part 430) requirements for energy conversation.

Provides cold and hot battery monitoring for batteries with temperature sensing circuitry.

User Manual

Product Features: With pod installed, charges two batteries with or without radio.
Replaceable pod allows future use with different radios / batteries. Charging status of rear radio position confirmed by top LED.
Charging status of front radio position confirmed by middle LED.
Bottom LED illuminates to confirm charger is receiving power when both front and rear positions are empty.

Approvals: CEC, DoE, FCC, CE, UL (power supply)

Full 2-year warranty

Desktop AC Version: $742.50 Mobile DC Version: $856.35

Both come with AC power supplies, DC version includes

DC Hard Wire Kit and 12/24 VDC DC coil cord and mounting bracket with tie-downs

Data Sheet -- call or email for a quote

Buy AC Desktop unit on Amazon -- Buy DC mobile version on Amazon

Power Products Charger Video: https://youtu.be/T2NvcZlVu1I

__________________________________________________________________________

F.O.C.S Disaster Site Charging Systems
